LIGHT DUTY TRUCK EV CONVERSION (1)
본문
- EVCU, EGS, Cluster, PDU H/W & S/W development
- performance coordinate
- Control sequence & logic development
Vehicle specifications

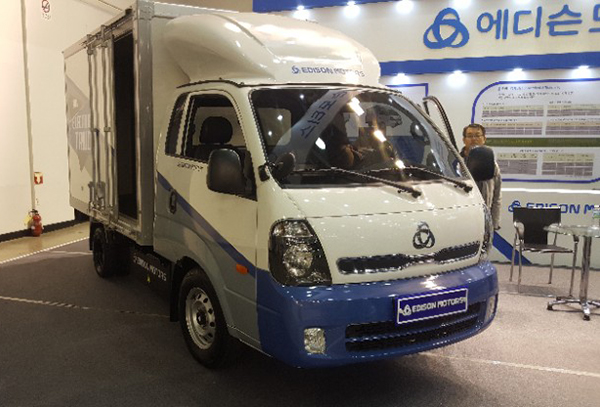

| Target Vehicle | Hyundai Porter 2 (1ton) |
|---|---|
| Motor | AC induction motor 67kW/160Nm |
| Gear Box | Manual T/M Use the original vehicle transmission |
| Inverter | IGBT MONO Inverter(3Phase) |
| OBC | 3.3 kW |
| LDC | 1.2 kW |
| Battery | Li-polymer 27kW 2P13S x 7modules |

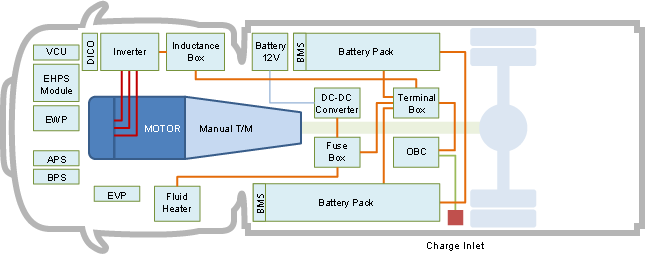

System configuration
