ACM

component

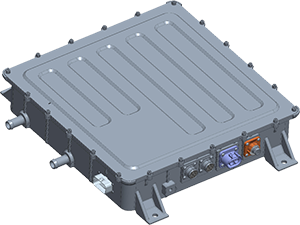

Auxiliary Control Module

ACM

  • Features
  • DC-DC Converter + two DC-AC Inverters in a single module
  • Applicable to the Electric Commercial Bus and Truck, FCEV, Electric Construction Equipment, Electric Agricultural Equipment, Etc. specially 24V low voltage system application
  • 2 x CAN interface, 1 x Digital input, 3 x Analog input, 1 x Sensor power out(5V)
  • Optional CAN type of HV Isolation monitoring Device

  • 01Specifications

    DC Input HV Voltage 400 ~ 750VDC
    LV Voltage 18 ~ 32V
    DC-DC
    Converter    		 Rated Power 5kW
    Rated Current 180A@27.5V
    DC-AC
    Converter    		 Applicable motor PMSM, ACIM
    Rated Power 5.5kW
    Rated Out-put Current 13A(Peak 19.5A)
    Out put frequency range ~300Hz
    Out put voltage range ~380Vac
    IMD
    (Optional)    		 Signal type CAN 2.0
    Insulation resistance
    measurement range    		 ~50MΩ
    Cooling Cooling media Water(50:50)
    Flow rate 15L/min
    Max pressure 2.0bar
    Operating Temp -20 ~ 65℃
    Protection IP67*
    Electrical Standard ECE R10.4*
    Remark (*) On process certification test

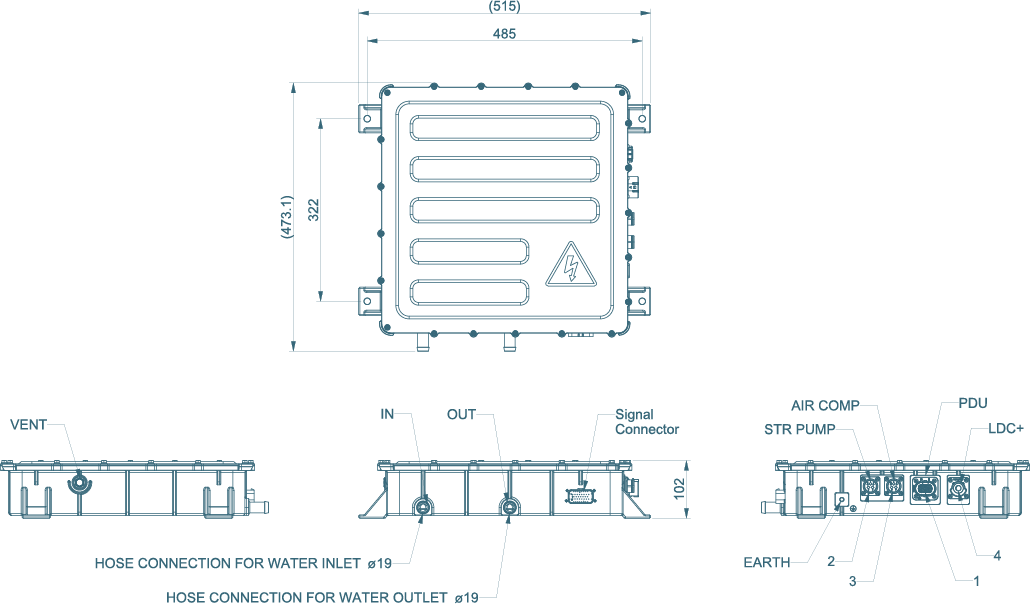

  • 02Dimensions
