PDU

component

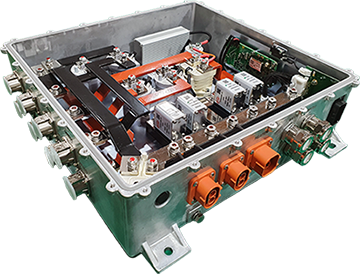

Power Distribution Unit

PDU

  • Applications
  • Electric & Hybrid vehicle
  • HV DC Power Relay
  • HV High-speed Fuse
  • IMD(Insulation Monitoring Device)
  • Pre-charge system

  • 01Specifications

    Parameter
    Operating Voltage 12V ~ 28V
    Operating Temperature -40°C ~ +85°C
    Protection IP67
    HV Relay
    EVL250
    (SCII)    		 Operating Voltage >~ 900VDC
    Coil Operating Voltage 9 ~ 36VDC
    DEVR30
    (Durakool)    		 Max. switching Voltage >1000VDC
    Coil Operating Voltage 9 ~ 36VDC
    HV Fuse
    Model Square Body DIN 43 653 High Speed Fuse
    (Bussmann)
    Type 170M13 series
    170M14 series
    170M26 series
    IMD
    Model IR155-3204
    (BENDER)
    Continuous measurement insulation resistance ~ 10MΩ
    Response Time Start < 2sec
    Direct Current Pulse < 20sec
    Signal Out PWM
    Standards
    Electrical ECE R10.4

  • 02Features

    Satisfied 12mm/kV Air-Distance and 20mm/kV Creepage Distance for all kind of HV component Bakelite and Busbar
    Required Controller for HV relay and IMD
    Applied PDU Box cover open control switch

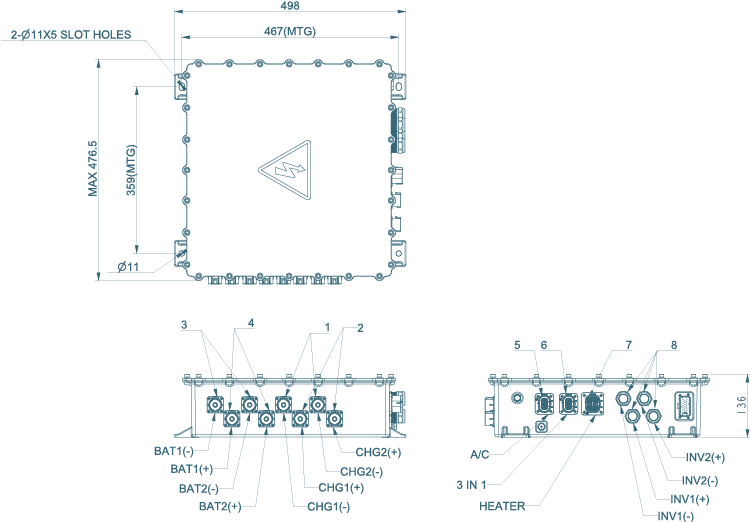

  • 03Dimensions
