Special Value

EVDM

component

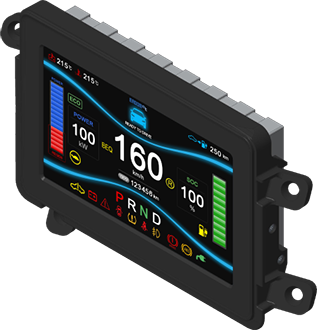

Electric Vehicle Display Module

EVDM_v31

  • 01Applications

    Electric & Hybrid vehicle Display indicator
    Electric & Hybrid vehicle Instrument display
    Camera Display system(2Ch)
    Passenger Car & Light-duty Vehicle (12V) to Bus & Heavy-duty Vehicle (24V)

  • 02Specifications

    Parameter
    Operating Voltage 9V ~ 32V
    Maximum Supply Voltage 36V
    Standby Current < 1mA
    Supply Current 600mA@12V
    Operating Temperature -40°C ~ +85°C
    Weight 600 g
    LCD
    LCD Size 7inch
    Dimensions(mm) 167.7(W) x 109.5(H) x 9.0(D)
    Active Area(mm) 152.4(w) x 91.44(H)
    Resolution 800 x 3(RGB) x 480
    Number of Colors 262k(6-bit RGB)
    Backlight LED
    Buzzer
    Sound Pressure Level(dB) Min. 85/ at 10cm
    Resonant Frequency(Hz) 750Hz
    Touch Panel(Option) - Capacitive touch
    Transmittance ≥85%
    Hardness 6H
    Standards
    Electrical ECE R10.4

  • 03Features

    Microprocessor

    32-bit EISC Microprocessor(AMAZON-ll)
    Up to 166MHz
    8KB 2way Instruction Cache
    8KB 2way Data Cache
    16KB Internal SPM Embedded Memory
    SAK-XC2238N-40F80L(INFINEON)
    SDRAM
    1Gb G-die DDR2 SDRAM(Samsung)
    Memory
    SLC NAND Flash Memory 2Gbit(Spansion)

    Communications

    4 x CAN Interface (HS CAN)
    Baud Rate : 50kbps - 1Mbps
    CAN Termination with internal circuit (default)
    CAN Gateway Function
    LVDS Interface(LCD)
    USB 2.0 Device(BSL Mode)

    Display Mode

    MAIN View
    DATA View
    DTC View
    Camera View(Ch1)
    Camera View(Ch2)
    ∗ Display Mode change by CAN

    Touch Mode(option)

    Capacitive Touch panel
    Interface : I2C

    Dimmer

    Back light set up by 2step

    Inputs

    Digital Input (0 ~ 32V)
    2 x Digital Input for Wake up(Configurable Digital Input High and Low)
    Default: 1 x DIH, 1 x DIL
    12 x DIX (Configurable Digital Input High and Low)
    Default: 8 x DIH, 4 x DIL
    Analog Input
    6 x Common mode A/D (Configurable 0 to 32V input)
    Video Input
    CAM1(Inner View)
    CAM2(Rear View)

    Outputs

    L3 x Sensor Supply Output(5V 400mA)
    Camera Power Supply(12V 2A)

    Sound Transducer

    Door Open Alarm
    Alarm of signal Light

    Protection

    Short circuit to Battery & ground
    Load dump protection
    Over voltage protection
    Revers voltage protection

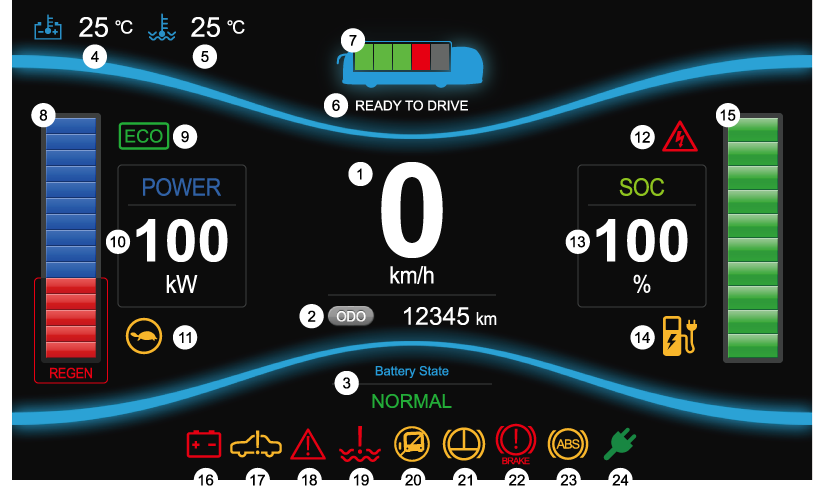

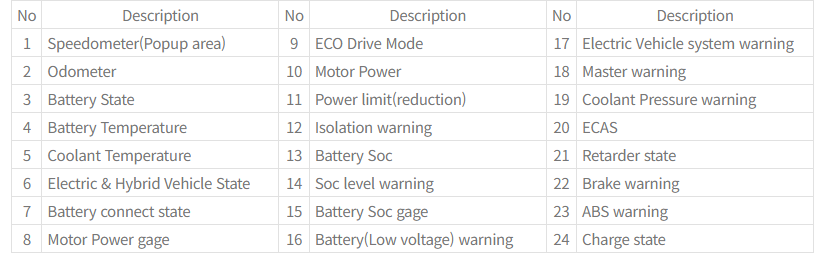

  • 04Display Indicator Description

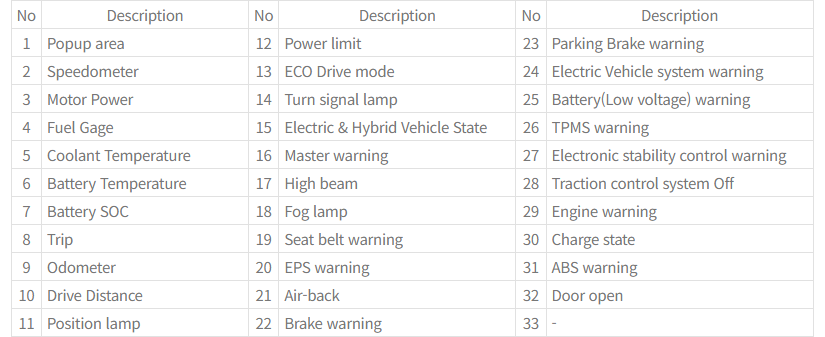

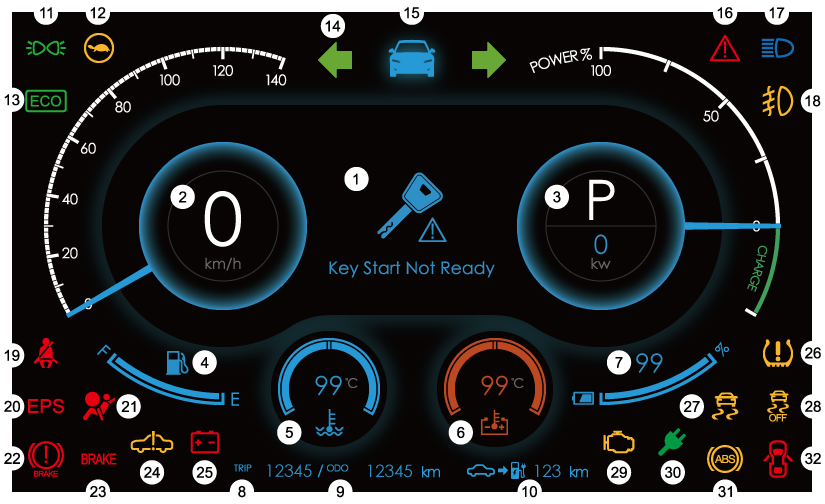

  • 05Instrument Display Description

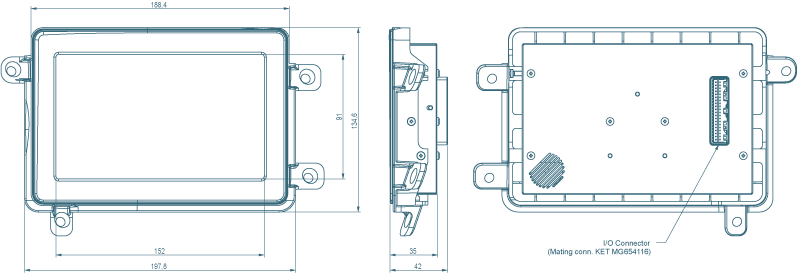

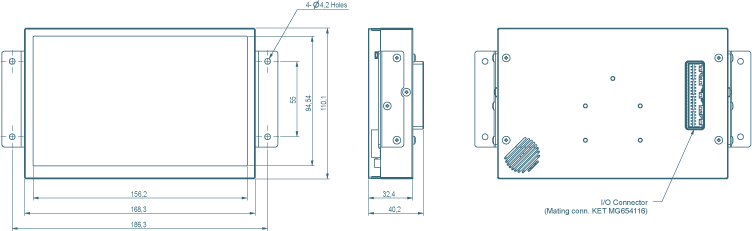

  • 06Dimensions
