PACM

component

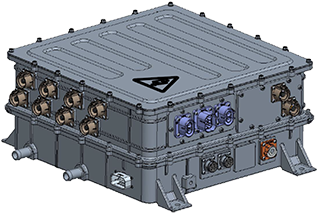

PDU w/ Auxiliary Control Module

PACM

Features
PDU + DC-DC Converter + two DC-AC Inverters in a single module
Applicable to the Electric Commercial Bus and Truck, FCEV, Electric Construction Equipment, Electric Agricultural Equipment, Etc. specially 24V low voltage system application
PDU includes Pre-charging, Multi Charging inlet port, Multi battery input port, Multi Inverter output port, Multi HVAC output port, reasonable HV contactor and Fuse, and Isolation monitoring function
2 x CAN interface, 1 x Digital input, 3 x Analog input, 1 x Sensor power out(5V)
Applied all the HV connector inter-lock and PDU Box cover open control switch

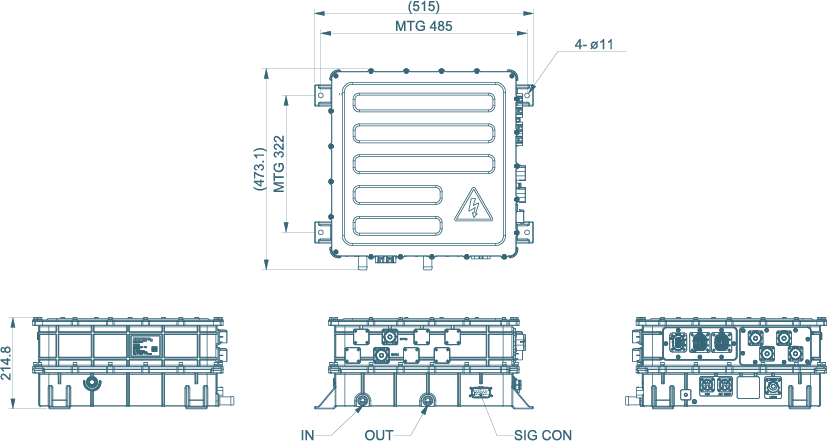

01Specifications

PDU	Input High Voltage	400 ~ 750VDC
	Input Low Voltage	18 ~ 32V
	Continuous Carry Current	600A
	Applicable HV In/Output port qty	2 x 50sqmm Battery 2 x 50sqmm CHG 2 x 50sqmm Inverter 4 x 6sqmm HVAC
DC-DC Converter	Rated Power	5kW
DC-DC Converter	Rated Current	180A@27.5V
DC-AC Converter	Applicable motor	PMSM, ACIM
	Rated Power	5.5kW
	Rated Out-put Current	13A(Peak 19.5A)
	Out put frequency range	~300Hz
	Out put voltage range	~380Vac
Fuse	High current(Square type)	50~400A
Fuse	Low current(Tube type)	10~30A
IMD	Signal type	CAN 2.0
IMD	Insulation resistance measurement range	~50MΩ
Pre-Charge Resistor		300W200Ω(Customizable)
Busbar		Copper 99.9% Conductivity 98%
Cooling	Cooling media	Water(50:50)
	Flow rate	15L/min
	Max pressure	2.0bar
Operating Temp		-20 ~ 65℃
Protection		IP67*
Electrical Standard		ECE R10.4*
Remark (*) On process certification test
