EGS

component

Electric Gear Shifter

EGS

  • Applications
  • Electric & Hybrid vehicle Gear shift
  • Passenger Car & Light-duty Vehicle (12V) to Bus & Heavy-duty Vehicle (24V)

  • 01Specifications

    Parameter
    Operating Voltage 12V ~ 28V
    Maximum Supply Voltage 36V
    Standby Current < 1mA
    Supply Current(without load) 150mA@12V
    Operating Temperature -40°C ~ +85°C
    Weight 181 g
    Indicator
    Backlight LED(White)
    Dimmer 2step
    Encoder
    Detent torque 40±14mN.m
    Number of detent 18
    Number of pulse 9
    Buzzer
    Sound Pressure Level(dB) Min.85/ at 10cm
    Resonant Frequency(Hz) 1,700 ~ 2,200Hz
    Standards
    Electrical HMC ES96200-00(P Ver.) @12V
    ECE ECE R10.4

  • 02Features

    Microprocessor

    SAK XC2238N 40F80L (INFINEON)

    Communications

    CAN Interface (HS CAN)
    Baud Rate : 50kbps - 1Mbps
    All CAN Termination with internal circuit

    Protection

    Short circuit to Battery & ground
    Load dump protection
    Over voltage protection
    Revers voltage protection

    Others

    EGS Controlled by CAN
    State save at key off
    Back light dimming control by CAN

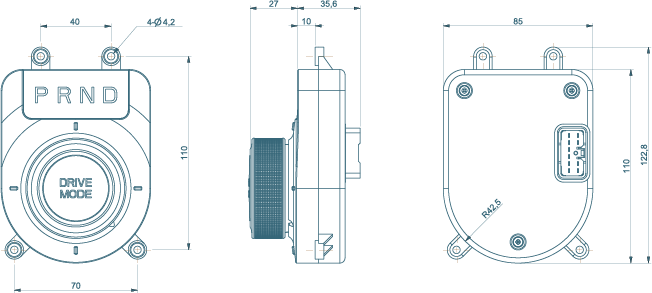

  • 03Dimensions
