Special Value
MCU
component
Motor Control Unit
MCU
Applications
- BSEV(Battery Swap Electric Vehicle) Roof Door Control
- Motor Control(DC 12 ~ 24V)
- Electronic Throttle Control
- Electric Valve Control
- Pump Control
- Passenger Car & Light-duty Vehicle (12V) to Bus & Heavy-duty Vehicle (24V)
-
01Specifications
Parameter Operating Voltage 6V ~ 32V Maximum Supply Voltage 36V Standby Current < 1mA Supply Current(without load) 100mA@12V Total Load Current 60A Operating Temperature -40°C ~ +125°C Degree of Protection IP67 & IP6k9k Weight 450 g Standards Electrical HMC ES96200-00
ES96202-01
ES95400-10
ES95682-00ECE ECE R10.3 Vibration & Impact HMC ES95400-10 Environmental HMC ES95400-10 -
02Features
Microprocessor
SAK-XC2299H-200F100L (Infineon)
80 MIPS Performance @ 80 MHz Frequency
Memory
832kB on-chip flash memory
50kB on-chip RAM
8kB on-chip EEPROM
Inputs
Digital Inputs (0 ~ 32V)
1 x Digital Input for Wake up, DIH (High-side Digital Input)
6 x DIX (Configurable Digital Input)
Default: DIH
Frequency Input
2 x High speed frequency signal input (Internal pull-up)
Outputs
4 x DOL (Digital Output Low
2 x 3A, 2x 5A Low-side out.
PWM output (up to 5kHz)
6 x High & Low Side Output
3 x 40A, 1 x 20A High side & Low side output with high-side current sensing.
PWM output (up to 20kHz)
Motor Driver for half bridge & full bridge.
Communications
1 x CAN Interface (HS CAN)
Baud Rate : 50kbps - 1Mbps
All CAN Termination with internal circuit (default)
CAN Gateway Function
RS-232 Interface (up to 200kbps)
Sensor Supply
2 x Sensor Supply Output (5V 400mA)
Protection
Load dump protection
Over voltage protection
Revers voltage protection
Others
Monitoring of board temperature, supply voltage and sensor supply. -

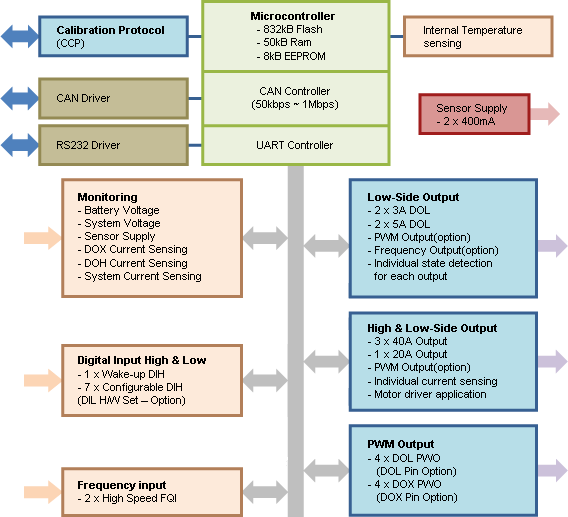

03Function Block Diagram
-

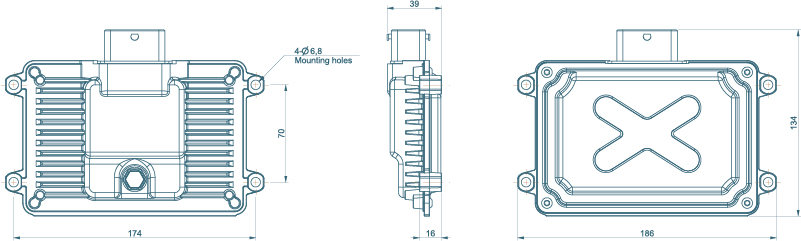

04Dimensions
