EVCU

component

Vehicle Control Unit

VCU_v30

  • Applications
  • Electric & Hybrid vehicle control unit
  • Driving Strategy Control
  • Hybrid Engine Speed & Load Control
  • Cluster Control
  • BCM & CAN gateway Control
  • On Board Charge Control
  • Quick Charge Control
  • Passenger Car & Light-duty Vehicle (12V) to Bus & Heavy-duty Vehicle (24V)

  • 01Specifications

    Parameter
    Operating Voltage 6V ~ 32V
    Maximum Supply Voltage 36V
    Standby Current < 1mA
    Supply Current(without load) 200mA@12V
    Total Load Current 60A
    Operating Temperature -40°C ~ +125°C
    Degree of Protection IP67 & IP6k9k
    Weight 730 g
    Standards
    Electrical HMC ES96200-00
    ES96202-01
    ES95400-10
    ES95682-00
    ECE ECE R10.3
    Vibration & Impact HMC ES95400-10
    Environmental HMC ES95400-10

  • 02Features

    Microprocessor

    SAK-XC2299H-200F100L (Infineon)
    100 MIPS Performance @ 100 MHz Frequency

    Memory

    1.6MB on-chip flash memory
    138kB on-chip RAM
    16kB on-chip EEPROM

    Inputs

    Digital Inputs (0 ~ 32V)
    4 x Digital Input for Wake up(3 x DIH(Digital Input High), 1 x DIL(Digital Input Low))
    8 x DIH (High-side Digital Input)
    10 x DIX (Configurable Digital Input)
    Default: 7 x DIH, 3 x DIL
    Analog Input
    2 x Potentiometer for APS & BPS
    2 x Pressure Sensor
    2 x NTC Sensor
    2 x Common mode A/D (Configurable 0 to 32V input)
    Normal Charge(OBC) Connector Proximity (SAE J1772)
    Frequency Input
    1 x High speed frequency signal input (Internal pull-up)
    Normal Charge(OBC) Pilot input (SAE J1772)
    Quick Charge Pilot Input

    Outputs

    16 x DOL (Digital Output Low
    2 x 1.1A, 12 x 2.2A , 2 x 3.3A Low-side out.
    PWM output (up to 10kHz)
    4 x DOH (Digital Output High)
    All DOH port up to 5A High-side output with current sensing.
    PWM output (up to 2kHz)
    6 x High & Low Side Output
    4 x 10A, 2 x 5A High side & Low side output with high-side current sensing.
    PWM output (up to 20kHz)
    Motor Driver for half bridge & full bridge.

    Communications

    4 x CAN Interface (HS CAN)
    Baud Rate : 50kbps - 1Mbps
    All CAN Termination with internal circuit (default)
    CAN Gateway Function
    LIN Interface
    RS-232 Interface (up to 200kbps)

    Sensor Supply

    6 x Sensor Supply Output (5V 400mA)

    Protection

    Load dump protection
    Over voltage protection
    Revers voltage protection

    Others

    Monitoring of board temperature, supply voltage and sensor supply.

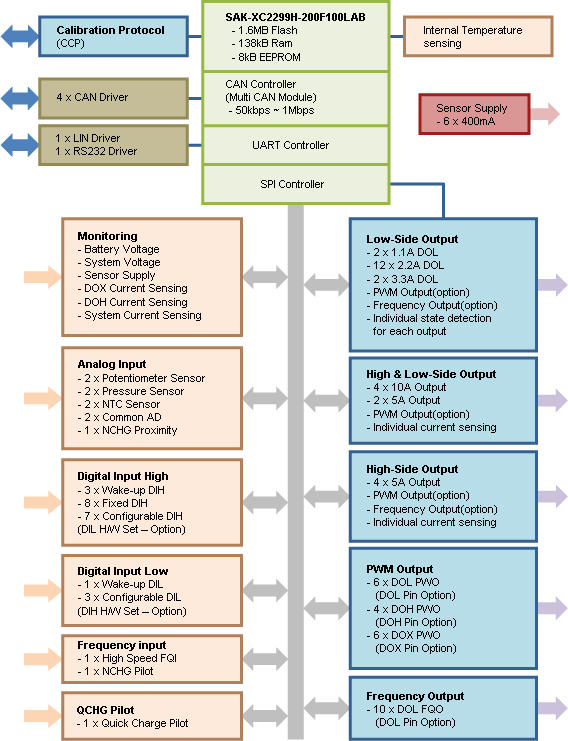

  • 03Function Block Diagram

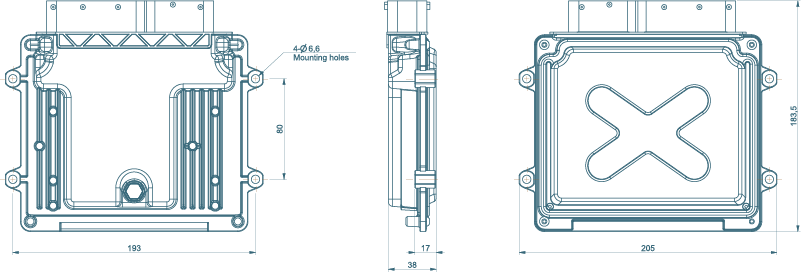

  • 04Dimensions
